Preliminary CSA O86 design for single/continuous-span wood beams, joists, lintels, and axially loaded built-up columns.

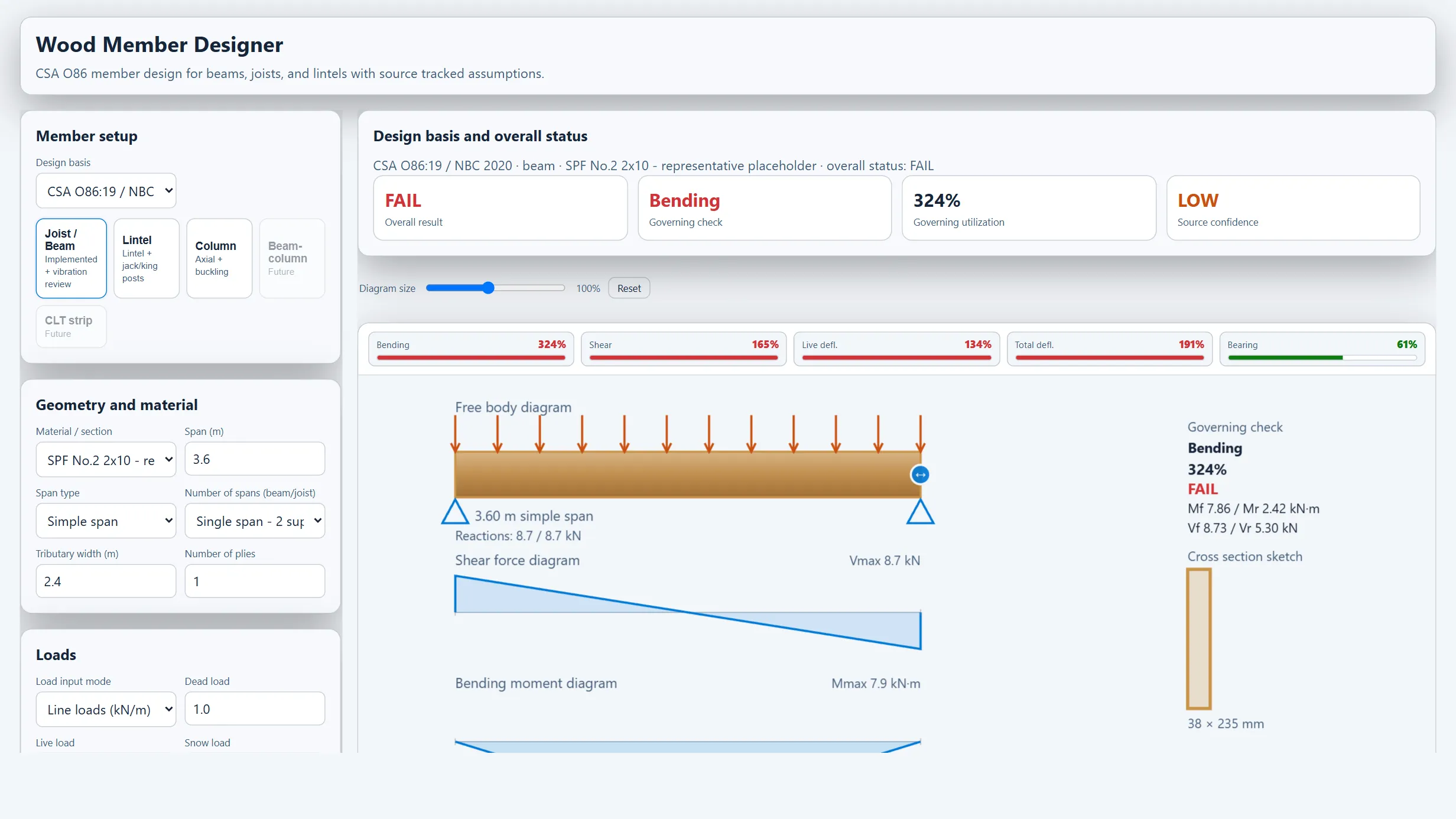

5), an elastic continuous-beam analysis with interior pin/roller supports, user-defined service holes/penetrations checked live against indicative code size and location limits (Ø ≤ D/3, edge and support clearances) and against the net section using the diagram moment and shear, interactive elevation and cross-section diagrams with draggable hole location/extents, on-canvas utilization summaries, source confidence, review warnings, and exportable handoff data.
Continuous beams assume equal spans with simple (pin/roller) interior supports; pattern (skip) loading, support settlement, and uplift combinations are not auto-generated. Columns cover concentric axial compression only. Material values are source tagged and may include representative placeholders.
Beam-columns with combined bending and axial, stud walls, shearwalls, connections, CLT, vibration, notches, and fire design require future implementation or independent review.
Use for preliminary member sizing and schematic engineering review only. Confirm material values, lateral restraint, bearing, notches, hole/penetration size and reinforcement, load combinations, and manufacturer data before project use.
