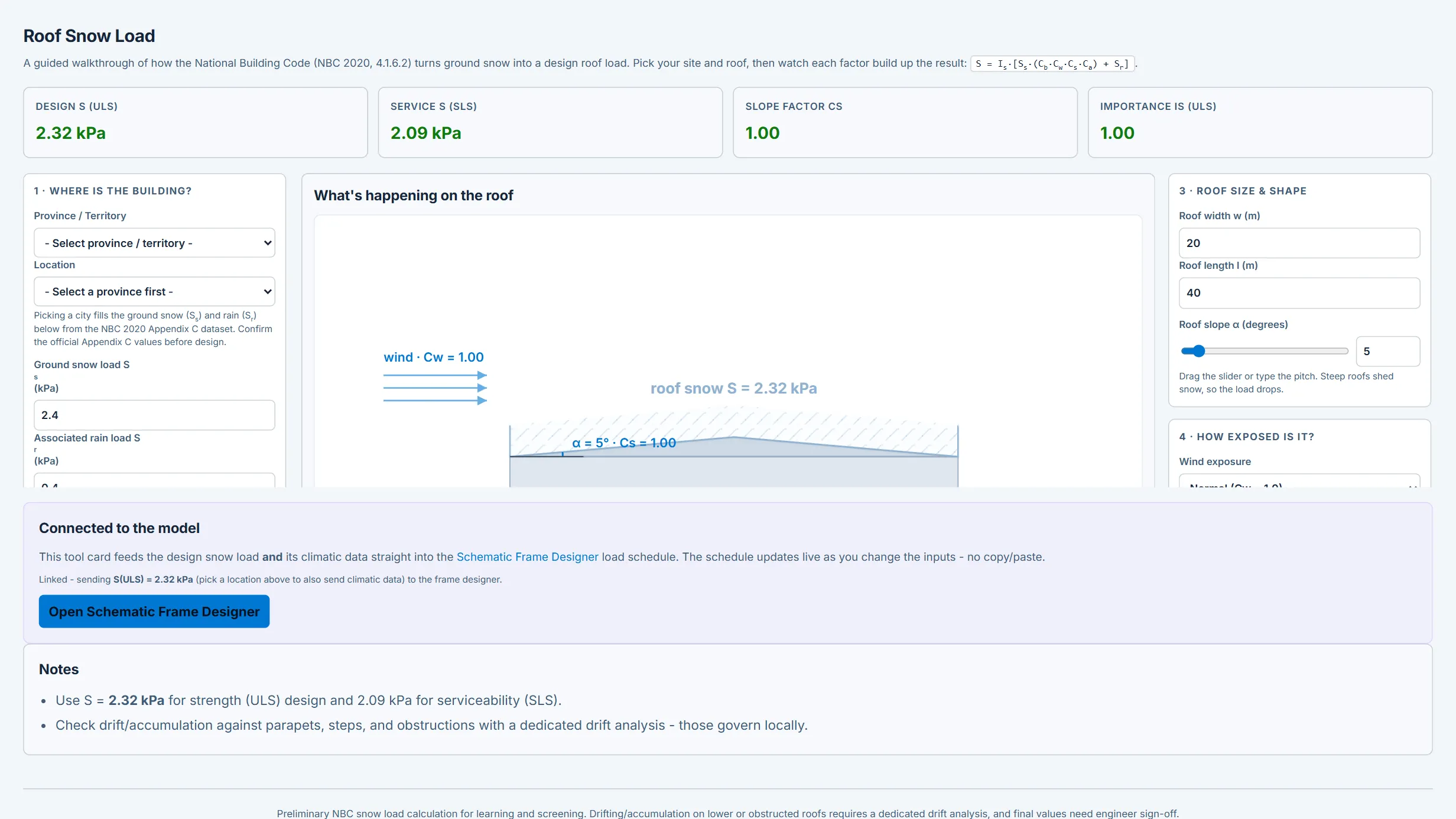

Computes specified roof snow load per NBC 2020 4.1.6.2 with a full factor-by-factor breakdown.
2: S = Is·[Ss·(Cb·Cw·Cs·Ca) + Sr]. Derives the basic factor Cb from roof characteristic length, the slope factor Cs by roof type and slope, the wind exposure factor Cw, and the importance factor Is, returning S for ULS and SLS with a full factor-by-factor breakdown. Accepts ground snow Ss and rain Sr from the Climatic Data Map (deep-link prefill).
Basic balanced (non-drift) uniform roof snow only. Step, parapet, and obstruction drift accumulation, sliding/unbalanced and partial-load cases are not covered - use the dedicated snow drift and snow load case tools. Reduced wind-exposure Cw eligibility is the engineer's responsibility.
Ss and Sr are user-entered and must be confirmed against NBC Appendix C.
Use for preliminary uniform roof snow load. Verify climatic values, exposure eligibility, and all drift/accumulation cases before design use.
