Concrete pad & strip footing designer - bearing, one-way shear, punching shear, and flexure with interactive 2D section and draggable 3D isometric views.

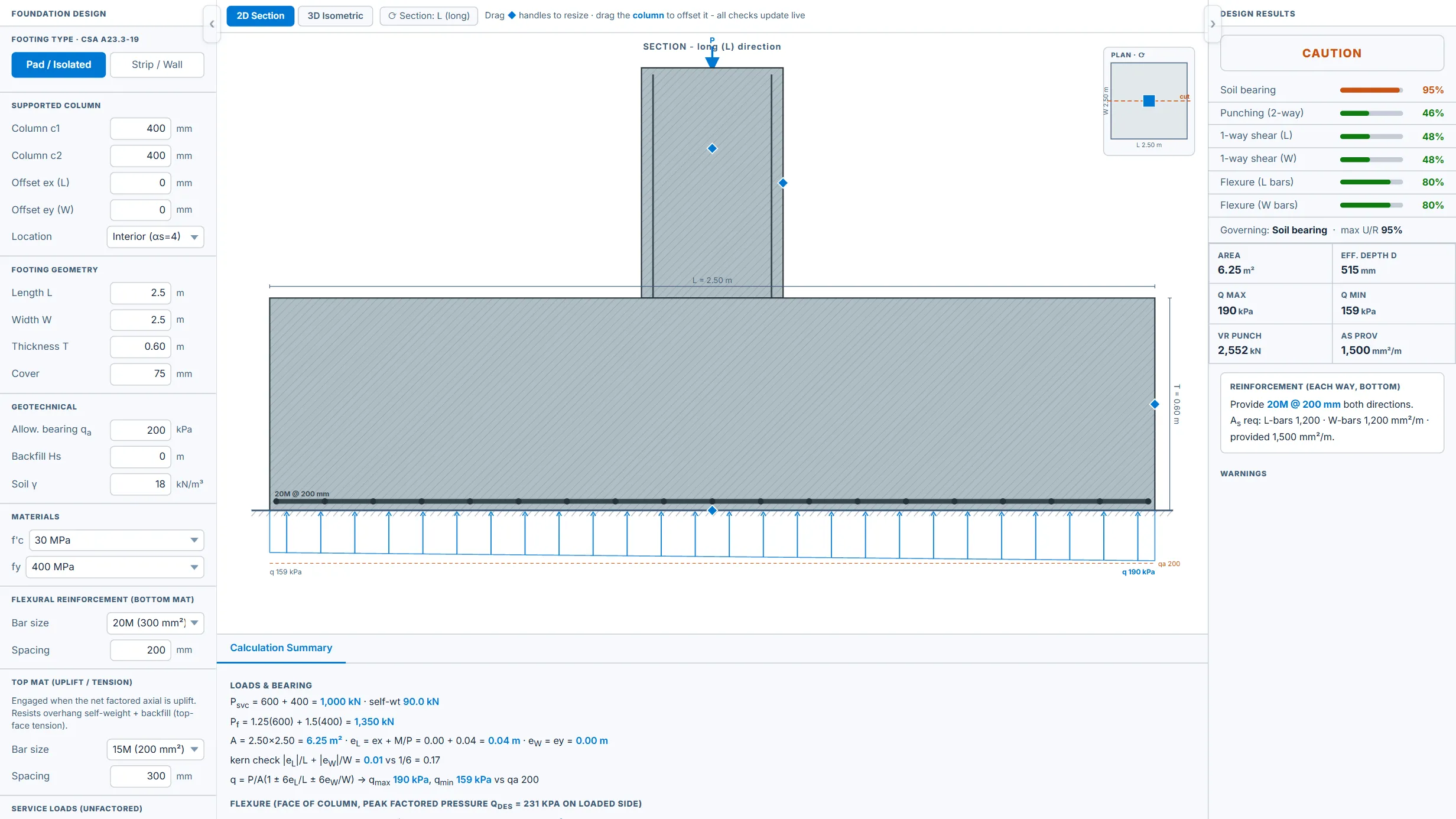

3-19. Sizes footings from column/wall loads and net allowable soil bearing, then checks bearing pressure (with moment eccentricity), one-way (beam) shear, two-way punching shear, and flexural reinforcement. Interactive 2D section and draggable 3D isometric views update all checks live.
Concentrically or uniaxially loaded isolated pad and strip footings only. No pile, mat, combined, or biaxial footing design. Soil bearing capacity is engineer-entered (no geotechnical model).
Use for preliminary pad/strip footing sizing and reinforcement. Confirm soil parameters with the geotechnical report and have results reviewed by the engineer of record.
