What it does
Single-element concrete column checks (rectangular and circular) with P-M interaction, tie spacing prompts, and column self-weight. Seeds the concrete column-to-footing handoff used by the foundation workflow.
Design Checker
Concrete Column Designer

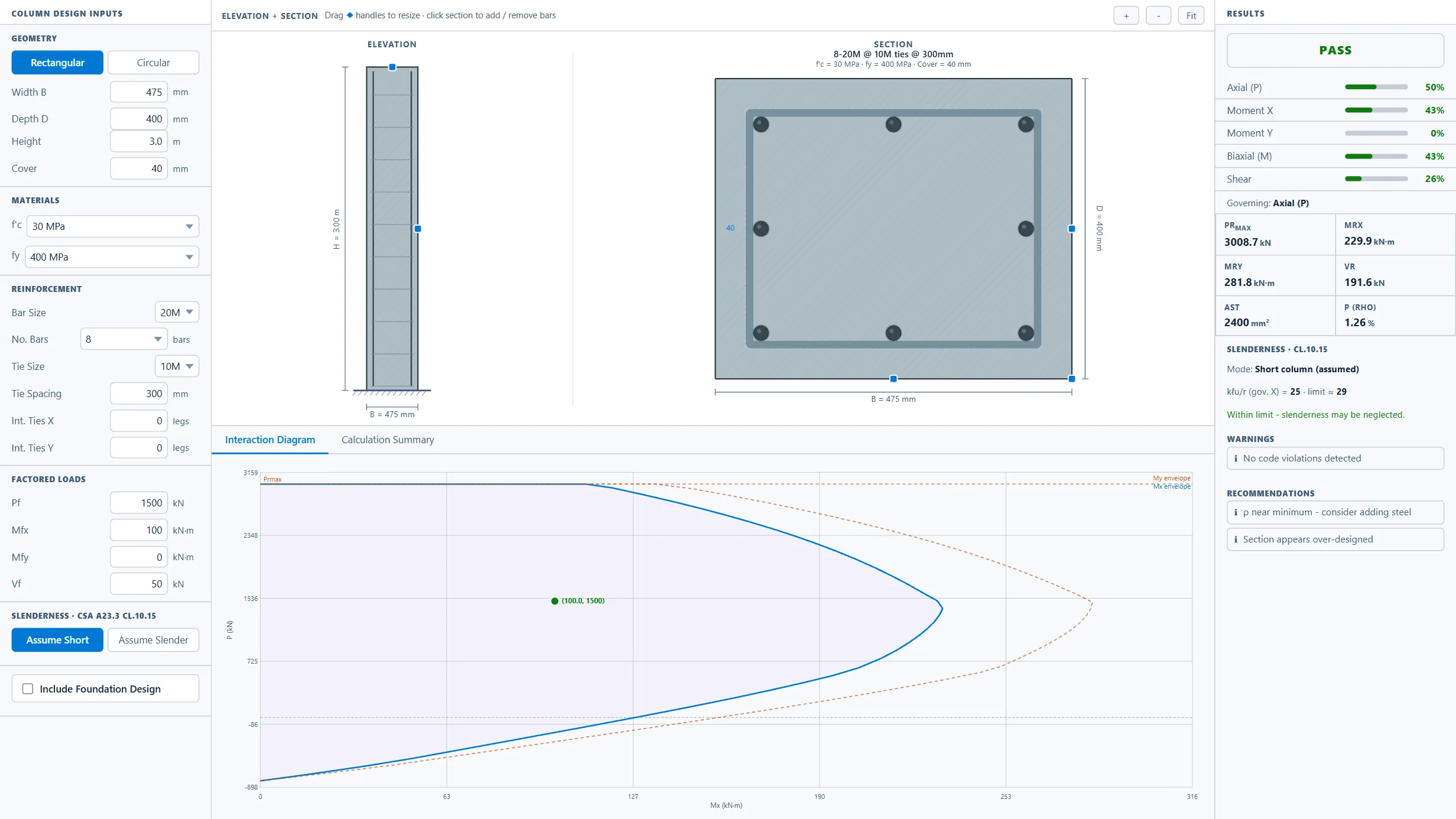

Single-element concrete column checks (rectangular/circular) with P-M interaction and column-to-footing handoff.
Design CheckerDesign aid
What it does not do
Member-level checker. No building-level load takedown; slenderness/magnification must be confirmed by the engineer; foundation eccentricity is not fully resolved automatically.
How to use it
Use for preliminary column checks and as the source of column-to-footing handoff data. Confirm load combinations, effective lengths, and second-order effects.
Covers
concretecolumnp-m-interactionfooting-handoffa23.3
